1 Digit 7 Segment Display – Common Anode

SKU: WS-00040
In Stock
0.75 JOD 0.49 JOD
In Stock
Other people want this. 5 people have this in their carts right now.
SKU: WS-00040 Category:

Description:

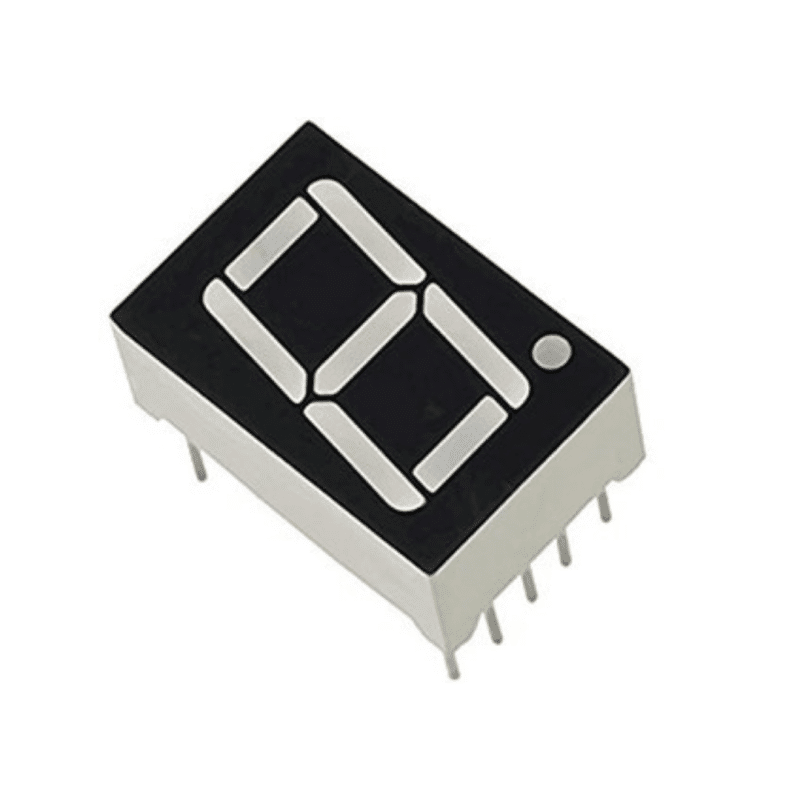

The 1 Digit 7 Segment Display with Common Anode is a compact and efficient electronic component widely used for numerical and alphanumeric display applications. Each digit in the display consists of seven individually controllable segments, allowing for the representation of numerical characters from 0 to 9 and additional characters based on specific segment combinations. The common anode configuration simplifies the control and integration of the display into various electronic projects, making it a popular choice for digital counters, clocks, and other numeric display systems.

الوصف: شاشة العرض بـ 7 أرقام واحدة مع مصدر مشترك  هي مكون إلكتروني فعال ومدمج يُستخدم على نطاق واسع في تطبيقات العرض الرقمي والأبجدية. يتألف كل رقم في العرض من سبعة أشكال يمكن التحكم فيها بشكل فردي، مما يتيح تمثيل الأحرف الرقمية من 0 إلى 9 وبعض الحروف الإضافية باستخدام تركيبات معينة للأشكال المضيئة. تبسيط تحكم الفولتية المشتركة في الأنود يُسهل التحكم والتكامل السلس للعرض في مشاريع إلكترونية مختلفة، مما يجعله خيارًا شائعًا للعدادات الرقمية والساعات وأنظمة العرض الرقمي الأخرى.

Description

1 Digits 7 Segment LED Display

Description:

The 1 Digit 7 Segment Display with Common Anode is a compact and efficient electronic component widely used for numerical and alphanumeric display applications. Each digit in the display consists of seven individually controllable segments, allowing for the representation of numerical characters from 0 to 9 and additional characters based on specific segment combinations. The common anode configuration simplifies the control and integration of the display into various electronic projects, making it a popular choice for digital counters, clocks, and other numeric display systems.

Key Features:

  1. Seven Segment Configuration: The display is structured with seven segments per digit, allowing for the clear representation of numerical digits and some letters using a combination of illuminated segments.
  2. Common Anode Design: This display features a common anode configuration, simplifying the control mechanism by connecting the anodes of all the LED segments in each digit to a common voltage source.
  3. Numerical and Alphanumeric Display: Capable of displaying numeric characters 0 through 9, the display can also represent certain letters and symbols through specific segment combinations.
  4. Compact Size: With a compact form factor, this 1-digit display is suitable for projects with limited space, offering versatility in design and integration.
  5. Easy Integration: The common anode design facilitates ease of integration into various electronic circuits, making it accessible for both hobbyists and professionals.

Specifications:

  • Digit Count: 1
  • Segment Count per Digit: 7
  • Common Anode

الوصف: شاشة العرض بـ 7 أرقام واحدة مع مصدر مشترك  هي مكون إلكتروني فعال ومدمج يُستخدم على نطاق واسع في تطبيقات العرض الرقمي والأبجدية. يتألف كل رقم في العرض من سبعة أشكال يمكن التحكم فيها بشكل فردي، مما يتيح تمثيل الأحرف الرقمية من 0 إلى 9 وبعض الحروف الإضافية باستخدام تركيبات معينة للأشكال المضيئة. تبسيط تحكم الفولتية المشتركة في الأنود يُسهل التحكم والتكامل السلس للعرض في مشاريع إلكترونية مختلفة، مما يجعله خيارًا شائعًا للعدادات الرقمية والساعات وأنظمة العرض الرقمي الأخرى.

الميزات الرئيسية:

تكوين بـ سبعة أشكال: تم تصميم العرض بـ 7 أشكال لكل رقم، مما يتيح التمثيل الواضح للأرقام وبعض الحروف باستخدام تركيبات معينة للأشكال المضيئة.

تصميم بفولتية مشتركة: يتميز هذا العرض بتصميم فولتية مشتركة، مما يبسط آلية التحكم عن طريق ربط أنود جميع أشكال الصمام في كل رقم بمصدر فولتية مشترك.

عرض رقمي وأبجدي: يمكنه عرض الأحرف الرقمية من 0 إلى 9، ويمكن أيضًا تمثيل بعض الحروف والرموز من خلال تركيبات معينة للأشكال المضيئة.

حجم مدمج: بفضل حجمها المدمج، تعتبر هذه الشاشة ذات الرقم الواحد مناسبة للمشاريع ذات المساحة المحدودة، مما يوفر مرونة في التصميم والتكامل.

سهولة التكامل: يُسهل تصميم الفولتية المشتركة التكامل السهل في دوائر إلكترونية متنوعة، مما يجعلها متاحة لكل من هواة الإلكترونيات والمحترفين.

المواصفات:

عدد الأرقام: 1

عدد الأشكال في كل رقم: 7

فولتية مشتركة





Specifications:

  • Digit Count: 1
  • Segment Count per Digit: 7
  • Common Anode: Yes

المواصفات:

عدد الأرقام: 1

عدد الأشكال في كل رقم: 7

فولتية مشتركة
